Clamping Nuts, Hydro-Mechanical
with through-hole thread and optional clamping force display
Clamping Nuts, Hydro-Mechanical
Downloads
Catalogue sheet
Operating instructions
Information Series
Description

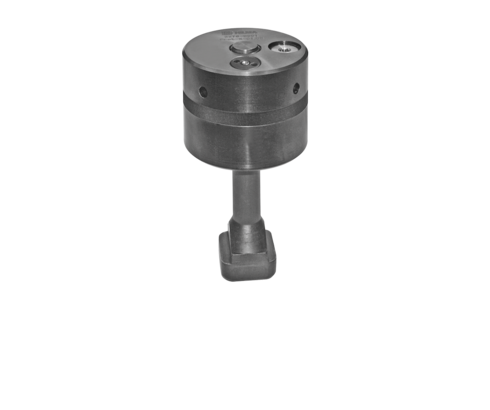

6.2276 Clamping Nut, Hydro-Mechanical with through-hole thread and optional clamping force display

Function

Following manual positioning of the clamping nut against the clamping edge, the integral hydraulic cushion is preloaded by turning the hexagon socket. A low torque is transmitted to a high clamping force.
In the case of versions without clamping force monitoring, use a torque wrench to ensure safe and defined build-up of the clamping force.
In the case of versions with clamping force monitoring, the clamping force indicator pin will project by approx. 2.5 mm when the clamping force is reached.

Clamping nut 6.2276 , hydro-mechanical
Clamping nut 6.2276 , hydro-mechanical
Video
Products (9)
Loading…
type
clamping nut, hydro-mechanical with through-thread (9)
max clamping force [kN]
clamping force display
T-slot as per DIN 650
max. tightening torque [Nm]
Item no. CAD datatypemax clamping force [kN]clamping force displayT-slot as per DIN 650
Item no.
CAD data
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
15
clamping force display
with
T-slot as per DIN 650
14
Properties
Item no.
CAD data
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
30
clamping force display
with
T-slot as per DIN 650
18
Properties
Item no.
CAD data
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
60
clamping force display
without
T-slot as per DIN 650
22
Properties
Item no.
CAD data
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
60
clamping force display
with
T-slot as per DIN 650
22
Properties
Item no.
CAD data
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
100
clamping force display
without
T-slot as per DIN 650
28
Properties
Item no.
CAD data
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
100
clamping force display
with
T-slot as per DIN 650
28
Properties
Item no.
CAD data
/
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
100
clamping force display
with
T-slot as per DIN 650
36
Properties
Item no.
CAD data
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
150
clamping force display
without
T-slot as per DIN 650
36
Properties
Item no.
CAD data
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
150
clamping force display
with
T-slot as per DIN 650
36
Properties
Loading…
Item no.
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
15
clamping force display
with
T-slot as per DIN 650
14
max. tightening torque [Nm]
9
Item no.
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
30
clamping force display
with
T-slot as per DIN 650
18
max. tightening torque [Nm]
9
Item no.
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
60
clamping force display
without
T-slot as per DIN 650
22
max. tightening torque [Nm]
9
Item no.
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
60
clamping force display
with
T-slot as per DIN 650
22
max. tightening torque [Nm]
9
Item no.
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
100
clamping force display
without
T-slot as per DIN 650
28
max. tightening torque [Nm]
30
Item no.
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
100
clamping force display
with
T-slot as per DIN 650
28
max. tightening torque [Nm]
30
Item no.
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
100
clamping force display
with
T-slot as per DIN 650
36
max. tightening torque [Nm]
30
Item no.
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
150
clamping force display
without
T-slot as per DIN 650
36
max. tightening torque [Nm]
40
Item no.
type
clamping nut, hydro-mechanical with through-thread
max clamping force [kN]
150
clamping force display
with
T-slot as per DIN 650
36
max. tightening torque [Nm]
40
Accessories (15)
Item no. CAD data Description
Item no.
CAD data
/
Description
Bracket with spacer bar for T-slot 14 mm as per catalogue sheet WZ 3.2130 link to PDF catalogue sheet: https://www.roemheld-gruppe.de/en/?dlname=WZ32130&dllang=en
Item no.
CAD data
/
Description
Bracket with spacer bar for T-slot 18 mm as per catalogue sheet WZ 3.2130 link to PDF catalogue sheet: https://www.roemheld-gruppe.de/en/?dlname=WZ32130&dllang=en
Item no.
CAD data
Description
Bracket to accommodate a spring clamping cylinder without spacer bar for T-slot 22 mm as per catalogue sheet WZ 3.1403 link to PDF catalogue sheet: https://www.roemheld-gruppe.de/en/?dlname=WZ31403&dllang=en
Item no.
CAD data
Description
Bracket to accommodate a spring clamping cylinder without spacer bar for T-slot 28 mm as per catalogue sheet WZ 3.1403 link to PDF catalogue sheet: https://www.roemheld-gruppe.de/en/?dlname=WZ31403&dllang=en
Item no.
CAD data
/
Description
Bracket with spacer bar for T-slot 36 mm as per catalogue sheet WZ 3.2130 link to PDF catalogue sheet: https://www.roemheld-gruppe.de/en/?dlname=WZ32130&dllang=en
Item no.
CAD data
/
Description
T-bolt for T-slot 18 mm M16 x 160 mm long as per catalogue sheet WZ 3.2130 link to PDF catalogue sheet: https://www.roemheld-gruppe.de/en/?dlname=WZ32130&dllang=en
Item no.
CAD data
/
Description
T-bolt for T-slot 22 mm M20 x 200 mm long as per catalogue sheet WZ 3.2130 link to PDF catalogue sheet: https://www.roemheld-gruppe.de/en/?dlname=WZ32130&dllang=en
Item no.
CAD data
/
Description
T-bolt for T-slot 28 mm M24 x 250 mm long as per catalogue sheet WZ 3.2130 link to PDF catalogue sheet: https://www.roemheld-gruppe.de/en/?dlname=WZ32130&dllang=en
Item no.
CAD data
/
Description
T-bolt for T-slot 36 mm M30 x 250 mm long as per catalogue sheet WZ 3.2130 link to PDF catalogue sheet: https://www.roemheld-gruppe.de/en/?dlname=WZ32130&dllang=en
Item no.
CAD data
/
Description
T-bolt for T-slot 14 mm M12 x 160 mm long as per catalogue sheet WZ 6.2276 link to PDF catalogue sheet: https://www.roemheld-gruppe.de/en/?dlname=WZ62276&dllang=en
